Seeing the world in 3D isn’t just for gamers or filmmakers - it’s transforming the way businesses operate. From retail to manufacturing, 3D computer vision is unlocking new ways to streamline operations, improve customer experiences, and create smarter products. In this guide, we’ll break down what 3D computer vision is, how it works, and the real-world applications driving measurable results for businesses today.
3D computer vision is the technology that enables machines to see and interpret the world in three dimensions in a way much like the human eye. While traditional 2D vision only processes flat images, 3D vision goes a step further by capturing depth, distance, and spatial relationships between objects. This makes it far more effective in scenarios where accuracy and spatial awareness are critical.
At its core, 3D computer vision involves capturing, processing, and analyzing three-dimensional data from cameras, sensors, or even 2D images converted into depth maps. The result is a digital reconstruction of objects and environments that machines can understand and interact with.
For example, in a warehouse setting, a 2D system may recognize a box but struggle to determine its exact position. With 3D vision, however, robots can measure how far away the box is, navigate around obstacles, and pick it up with precision. This leap from flat images to spatial understanding is why 3D vision has become foundational for advanced applications like robotics, autonomous vehicles, augmented/virtual reality, and beyond.
At its core, 3D computer vision gives machines the ability to perceive the world in depth, not just flat images. This process involves a combination of cameras, sensors, and intelligent software that work together to capture, interpret, and act on three-dimensional data.

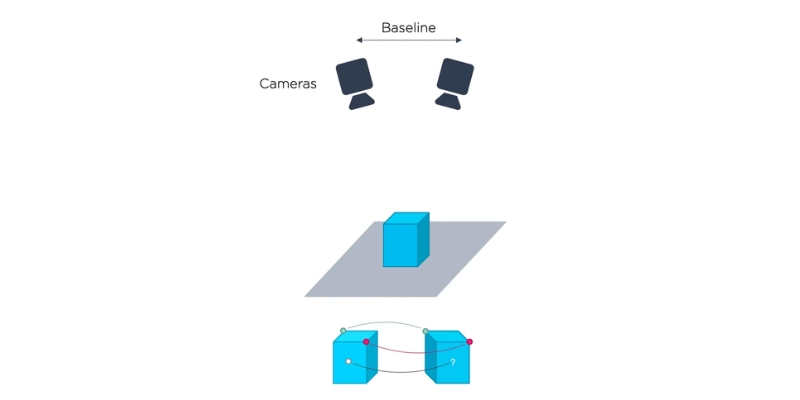

The journey starts with depth perception - the system’s ability to estimate how far objects are. Techniques like stereo matching, which uses two or more cameras to compare images from different viewpoints, or lidar imaging, which measures distance with laser pulses, help generate accurate depth data. More advanced methods, such as structure from motion and multi-view geometry, use multiple images or moving cameras to infer 3D information from 2D scenes.
Once the raw data is collected, it’s transformed into a digital model through point cloud processing. These millions of data points are aligned, cleaned, and enhanced through sensor fusion, combining information from different devices (e.g., cameras, ToF sensors, LiDAR) to create a more accurate picture. This is followed by 3D reconstruction, where the system builds a full representation of objects and environments - often refined with mesh generation, texture mapping, and spatial mapping to ensure realistic detail.
The 3D computer vision software then applies techniques like visual SLAM (Simultaneous Localization and Mapping) to help machines map unknown environments in real time, while sensor calibration ensures precise alignment between devices for accurate measurements. Finally, the system performs object recognition and motion analysis, allowing robots, vehicles, or AR devices to not only see objects but also understand their identity, orientation, and movement.
How does 3D computer vision works
Also read: Image Recognition Technology: How It Works, Benefits, And More

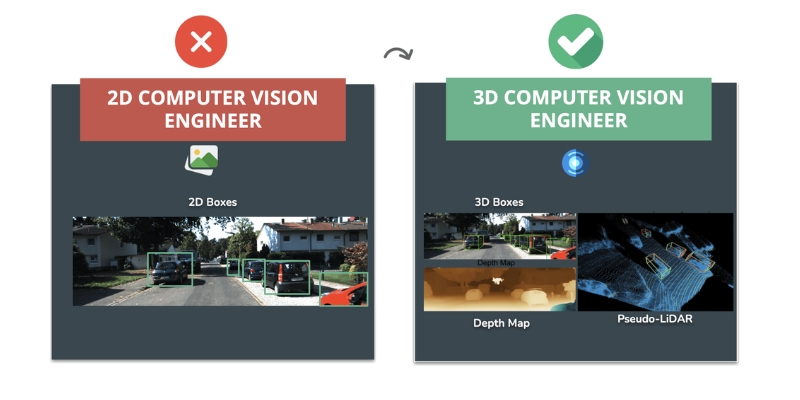

At a glance, both 2D and 3D computer vision share the same goal: helping machines interpret visual data. But the way they see - and what they can do with that information - differs significantly.
2D computer vision
2D vision systems work with flat images defined by X and Y coordinates. They process information like pixel intensity, contrast, color, and texture - similar to analyzing a photograph. Because they lack depth perception, these systems require highly controlled environments with stable lighting and fixed viewpoints to perform accurately. They excel in tasks such as defect detection, optical character recognition (OCR), barcode reading, and assembly verification. However, they struggle with spatial awareness, occlusion (when objects block each other), and variations in lighting or shadows.
3D computer vision
3D vision introduces a third axis - Z (depth) - and creates a point cloud, where every pixel has precise spatial coordinates. This enables machines to understand size, shape, distance, and position, making 3D vision particularly useful for tasks requiring accurate spatial awareness, such as robotic navigation, object manipulation, quality inspection, and autonomous driving. Unlike 2D, 3D systems handle cluttered or dynamic environments with more resilience and are less affected by lighting changes or shadows.
The key difference
Think of it this way: with 2D, a machine can recognize objects in a photo, but it can’t tell how far away they are or how big they truly are. With 3D computer vision, machines gain human-like spatial understanding, making them far more capable in real-world applications. The trade-off is that 3D systems are typically more complex, requiring advanced sensors, greater processing power, and larger storage capacity. But in return, they unlock a new level of precision and reliability that 2D vision alone can’t achieve.
The key difference
3D computer vision is transforming how businesses operate by giving machines the ability to see, understand, and interact with the physical world in ways that go far beyond traditional imaging. Let’s explore the various benefits this technology brings about:
Empowering robotics and automation
By providing real-time depth perception, 3D computer vision enables robots to move safely, recognize objects, and perform complex tasks without constant human intervention. This capability not only reduces manual effort but also minimizes errors, paving the way for smarter, more autonomous operations.
Unmatched precision and accuracy
Unlike 2D vision systems, 3D technology captures depth and dimensions with exceptional clarity. This makes it possible to identify objects with exact measurements, conduct dimensional analysis, and maintain strict quality standards. The result is fewer mistakes, more consistent outcomes, and higher overall product reliability.
Enhanced quality control and inspection
Defects, inconsistencies, or even the slightest deviations can compromise a product. With 3D vision, companies can detect flaws at the micro level before products leave the production line. This ensures that only items meeting the highest standards make it to customers, protecting brand reputation and reducing costly returns.
Increased efficiency and productivity
Acting as the “eyes” of automated systems, 3D vision technology allows machines to handle intricate tasks and operate smoothly in complex environments. Businesses benefit from faster processes, better resource utilization, and increased throughput—helping them stay competitive in fast-moving markets.
3D computer vision is no longer just a research concept - it’s already driving measurable impact across industries. By enabling machines to understand depth, geometry, and spatial context, this technology is creating new opportunities for efficiency, precision, and automation.
Manufacturing and quality control
In manufacturing, precision and consistency are everything. 3D vision systems are used for inspection, measurement, and defect detection at scale. Unlike 2D systems, which rely on contrast and lighting, 3D vision captures exact surface geometries and volumes. This means manufacturers can spot subtle defects such as tiny dents, scratches, or misalignments that traditional methods might miss. Complex parts like turbine blades or electronic components can be scanned in 3D to ensure they meet exact specifications. As a result, manufacturers benefit from fewer errors, faster production cycles, and higher product reliability.
Manufacturing and quality control
Also read: Computer Vision In Quality Control: The Ultimate Guide
Robotics and automation
3D vision is giving robots the ability to truly “see” their environments. Robots equipped with depth sensors can identify objects, estimate their position and orientation, and interact with them safely. For example, in an assembly line, a robot can pick up randomly scattered items from a bin - a task that was nearly impossible with 2D vision.
Mobile robots and cobots (collaborative robots) also use 3D vision for navigation, collision avoidance, and adaptive decision-making, allowing them to operate alongside humans in dynamic environments. This capability reduces dependency on fixed programming and increases flexibility, adaptability, and efficiency in automation.
Logistics and warehousing

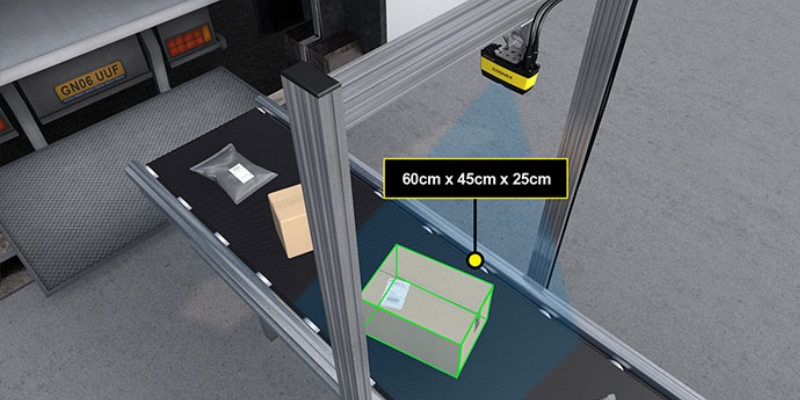

In logistics, efficiency often comes down to space and accuracy. 3D computer vision systems are used to measure packages in real time, generating precise data on volume, weight distribution, and dimensions. This helps in automating sorting systems, improving load planning, and optimizing warehouse storage.
For example, a logistics company can use 3D cameras to instantly determine the best way to stack goods, reducing wasted space and shipping costs. These systems also support inventory tracking and damage detection, ensuring items are handled correctly. The result is a supply chain that is leaner, faster, and more cost-effective.
Autonomous vehicles and drones
Self-driving cars and drones rely heavily on 3D computer vision to perceive and interpret their surroundings. Lidar, stereo vision, and depth-sensing cameras work together to create a 3D map of the environment, detecting objects, pedestrians, and road signs in real time. This allows vehicles to plan routes, avoid collisions, and adapt to changing conditions.
Drones, meanwhile, use 3D computer vision for terrain mapping, crop monitoring, and infrastructure inspection. In agriculture, drones equipped with 3D cameras can scan fields to identify areas of poor crop health, while in construction, they can generate 3D models of sites for progress tracking. These applications bring safer navigation, smarter decision-making, and reduced human intervention in critical tasks.
Autonomous vehicles and drones
Also read: Computer Vision for Drones: Benefits, Applications, and More
Healthcare
3D computer vision is transforming medical imaging and surgical planning. With technologies like CT, MRI, and 3D ultrasound, doctors can reconstruct highly detailed 3D models of organs, bones, or tumors. This allows for better diagnosis, personalized treatment plans, and minimally invasive procedures.
Surgeons can practice on a virtual 3D model of a patient’s anatomy before operating, reducing risks and improving outcomes. In rehabilitation, 3D vision systems track body movement to provide real-time feedback on posture and mobility, helping patients recover more effectively. Overall, the healthcare industry benefits from greater precision, safety, and personalization in patient care .
Retail and AR/VR experiences
For retailers, customer experience is a key differentiator, and 3D computer vision is enabling immersive, interactive shopping. A key application is virtual fitting rooms that use 3D scanning to let customers “try on” clothes without stepping into a store.
Furniture retailers, for example, use AR apps that project 3D models of sofas or tables into a customer’s living room, helping them make confident purchase decisions. In entertainment and training, 3D vision powers realistic AR and VR simulations, from gaming environments to workplace safety training modules. The result is higher engagement, reduced returns, and increased customer satisfaction.
Architecture and construction
In the construction industry, accuracy and safety are paramount. 3D computer vision systems are used to create digital twins of buildings and construction sites, enabling architects and engineers to visualize projects in detail before they are built. On-site, drones and scanners capture real-time 3D data to compare actual progress with design models, identifying errors early and avoiding costly rework. Workers can also use AR headsets powered by 3D computer vision to overlay building plans onto real structures, ensuring precision during installation and assembly. These applications improve project timelines, cost control, and workplace safety.
3D computer vision combines two key pillars: how machines see (capturing visual and depth data) and how machines think (analyzing that data with AI). Together, they enable machines to interpret and interact with the physical world in three dimensions. Let’s dive in to explore the technologies behind 3D computer vision.
How Machines See: Sensors and Data Collection
How Machines See: Passive vs. Active Reconstruction
How Machines Think: Deep Learning and AI
Technologies in 3D computer vision
While 3D computer vision is unlocking powerful applications, it still faces a range of technical, practical, and ethical challenges that businesses need to handle for effective implementation:
High computational demands
Processing dense 3D data - from point clouds to volumetric scans - requires substantial computing power, memory, and energy. Running such workloads in real time, especially on edge devices with limited resources, remains a major bottleneck.
Hardware complexity and cost
Many 3D computer vision systems depend on specialized hardware such as stereo cameras, LiDAR units, or depth sensors. Calibrating and integrating this equipment is not only technically demanding but also increases overall costs and maintenance requirements.
Environmental sensitivity
Real-world conditions like poor lighting, motion blur, reflective surfaces, or visual occlusions often reduce accuracy. In dynamic or cluttered environments, reliable depth perception and object recognition become even more difficult.
Real-time constraints
Applications such as autonomous driving, robotics, or AR/VR require instant decision-making. Achieving millisecond-level responses while maintaining accuracy pushes the limits of current algorithms and hardware.
Data volume and management
3D datasets are far larger than their 2D counterparts, creating challenges in storage, transmission, and processing. Without efficient compression, filtering, and management techniques, scaling such systems can be impractical.
Ethical and security concerns
Bias in training data may lead to unfair or inaccurate outcomes, particularly in areas like facial recognition. Privacy is another issue: capturing detailed 3D data of people in public spaces often happens without explicit consent. On top of that, security vulnerabilities could allow hackers to exploit 3D vision systems for malicious purposes.
3D computer vision is transforming the way machines see and interact with the world - from powering autonomous vehicles to enabling smarter manufacturing, healthcare, and retail solutions. Yet, despite its promise, businesses must carefully navigate challenges around cost, complexity, and scalability to unlock its full potential.
At Sky Solution, we specialize in helping organizations harness advanced computer vision technologies that are both practical and future-ready. Whether you’re looking to improve efficiency, enhance customer experiences, or pioneer new innovations, our tailored solutions can bring your vision to life. Ready to explore how 3D computer vision can give your business a competitive edge? Contact us now for a free consultation!
